Air Jet Mill / Microniser

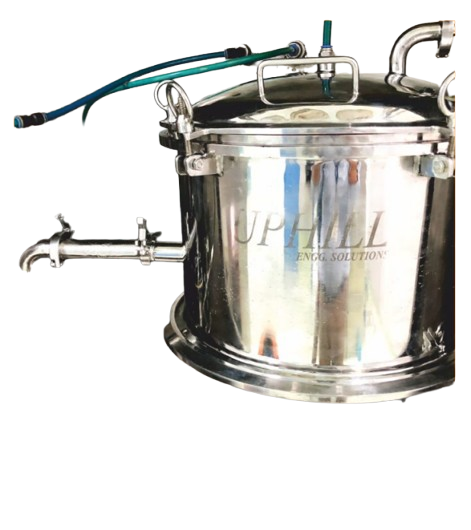

Air Jet Mill

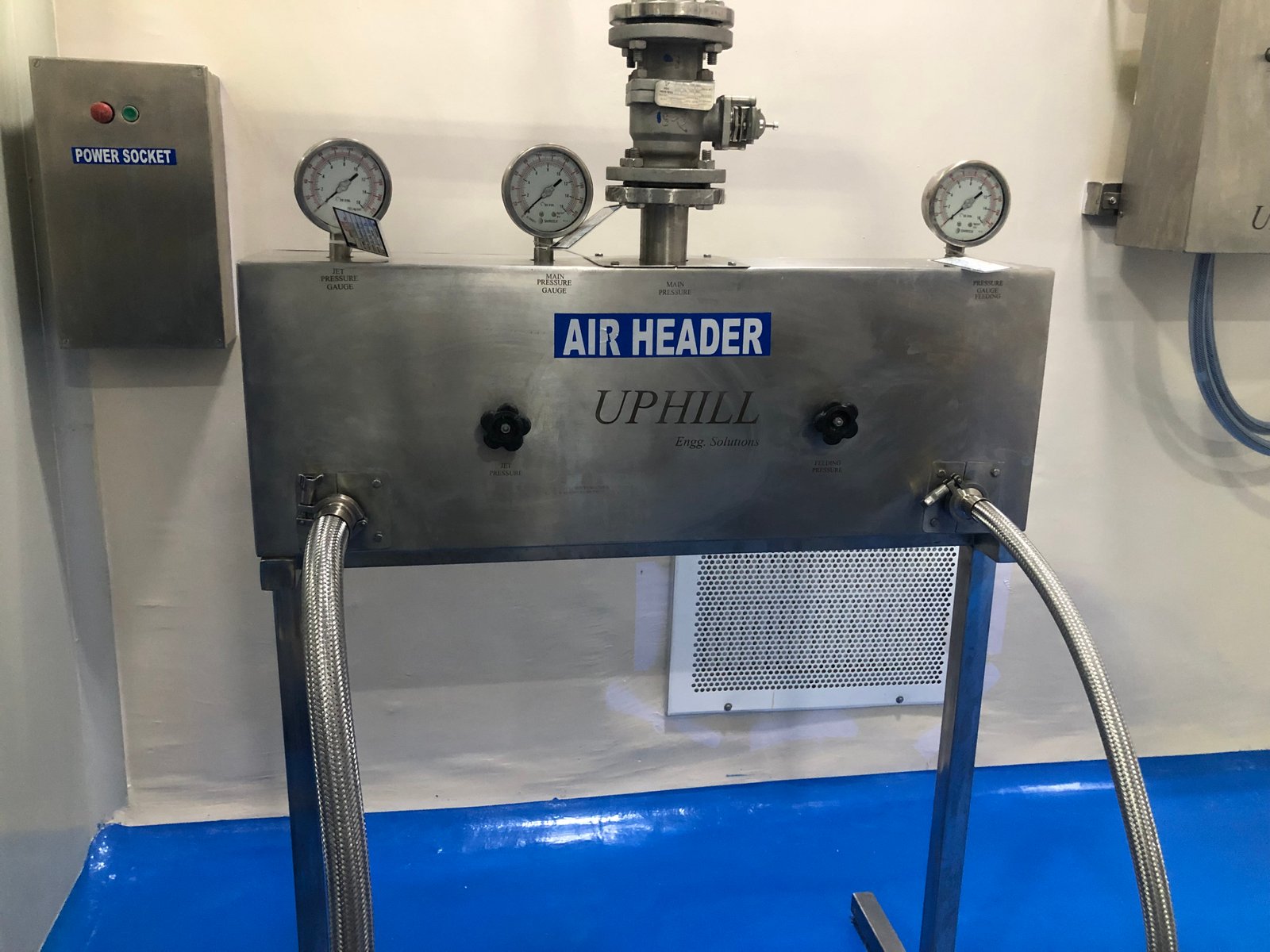

Air Distribution Header

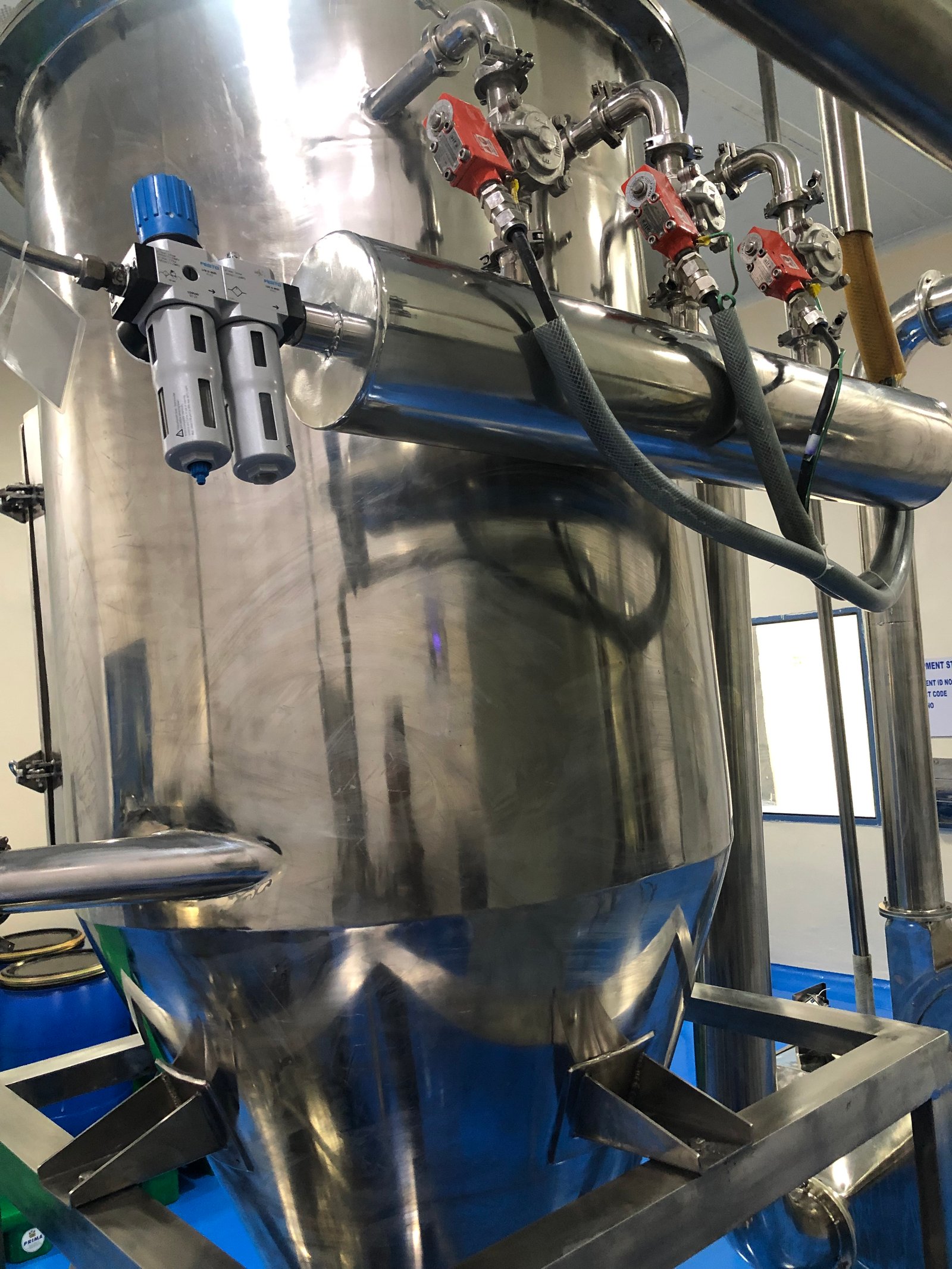

Filter Purging Header

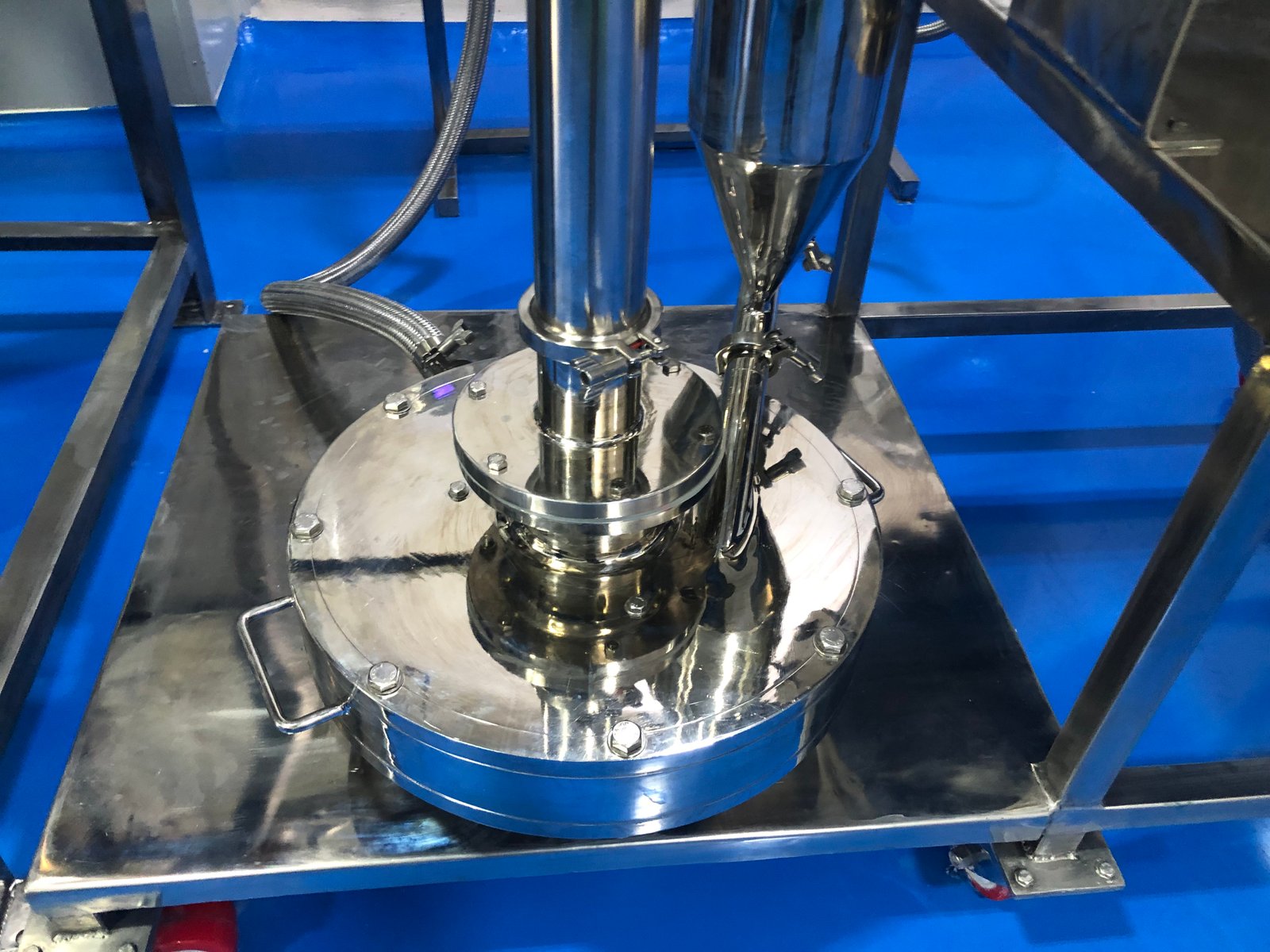

Micronizing Chember

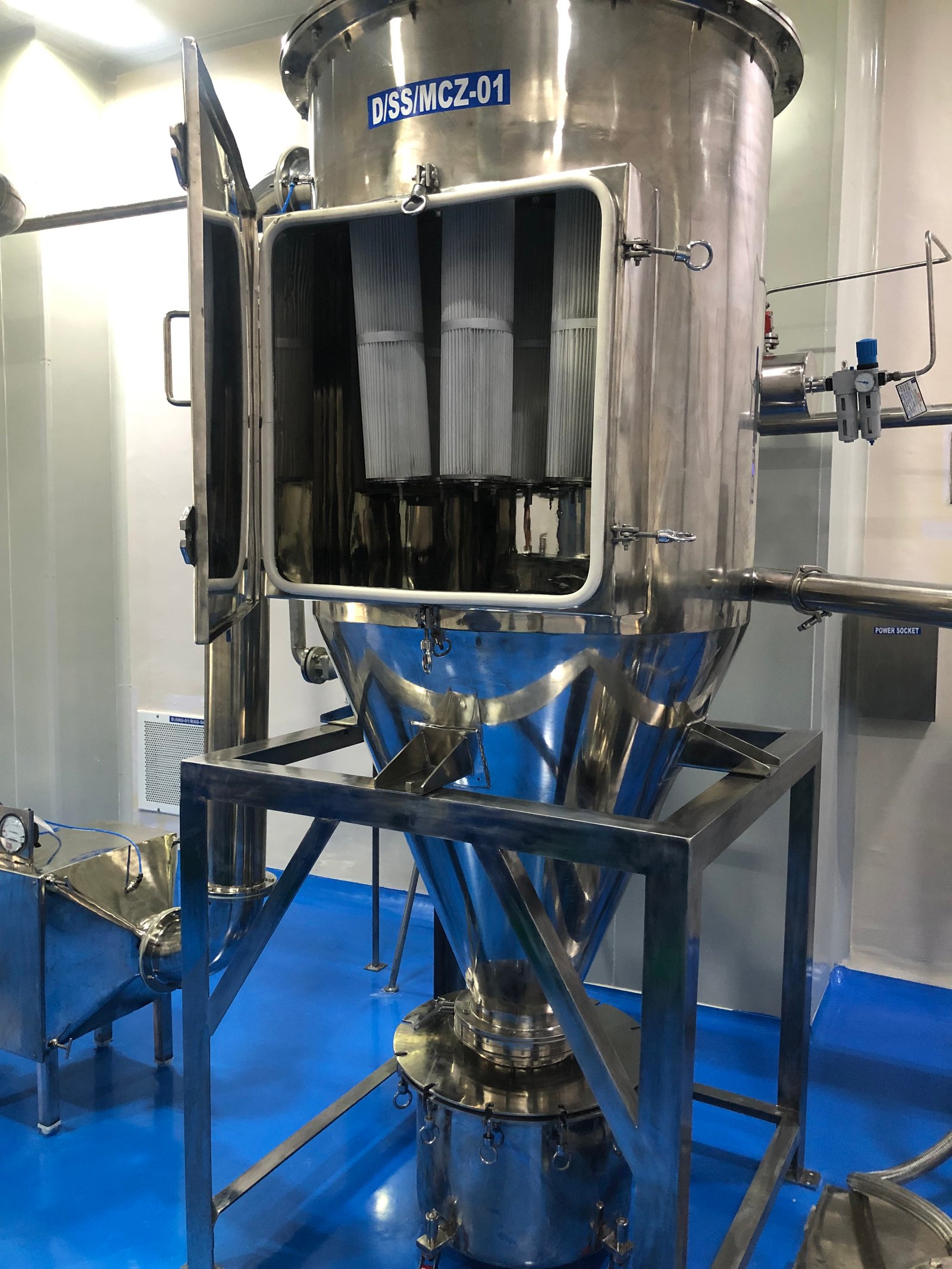

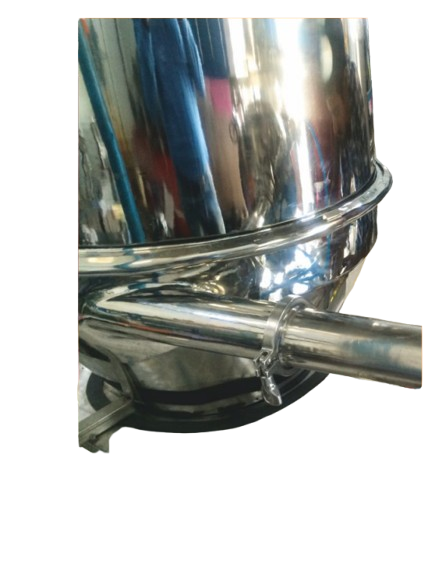

Powder Collection Housing Unit
Screw Feeder
About Microniser / Air Jet Mill
| Model | Output (Kgs/Hr) (input feed 100 Mesh Passed) | Air |
Overall Dimensions ( L x W x H ) |
||||
|---|---|---|---|---|---|---|---|
| 90% < 5 μ | 90% < 10 μ | 90% < 20 μ | 90% < 30 μ | CFM | Compressor HP | ||
| MEM 50G(2”) | 0.5 | 1 | 2 | 4 | 15 | 5 | 1.25 x 0.50 x 1.20 m |
| MEM100G(4") | 3 | 6 | 9 | 15 | 40 | 10 | 1.60 x 0.60 x 1.50 m |
| MEM150G(6") | 6 | 12 | 18 | 30 | 70 | 20 | 2.30 x 1.00 x 2.00 m |
| MEM200G(8”) | 10 | 20 | 30 | 50 | 100 | 25 | 2.40 x 1.10 x 2.30 m |

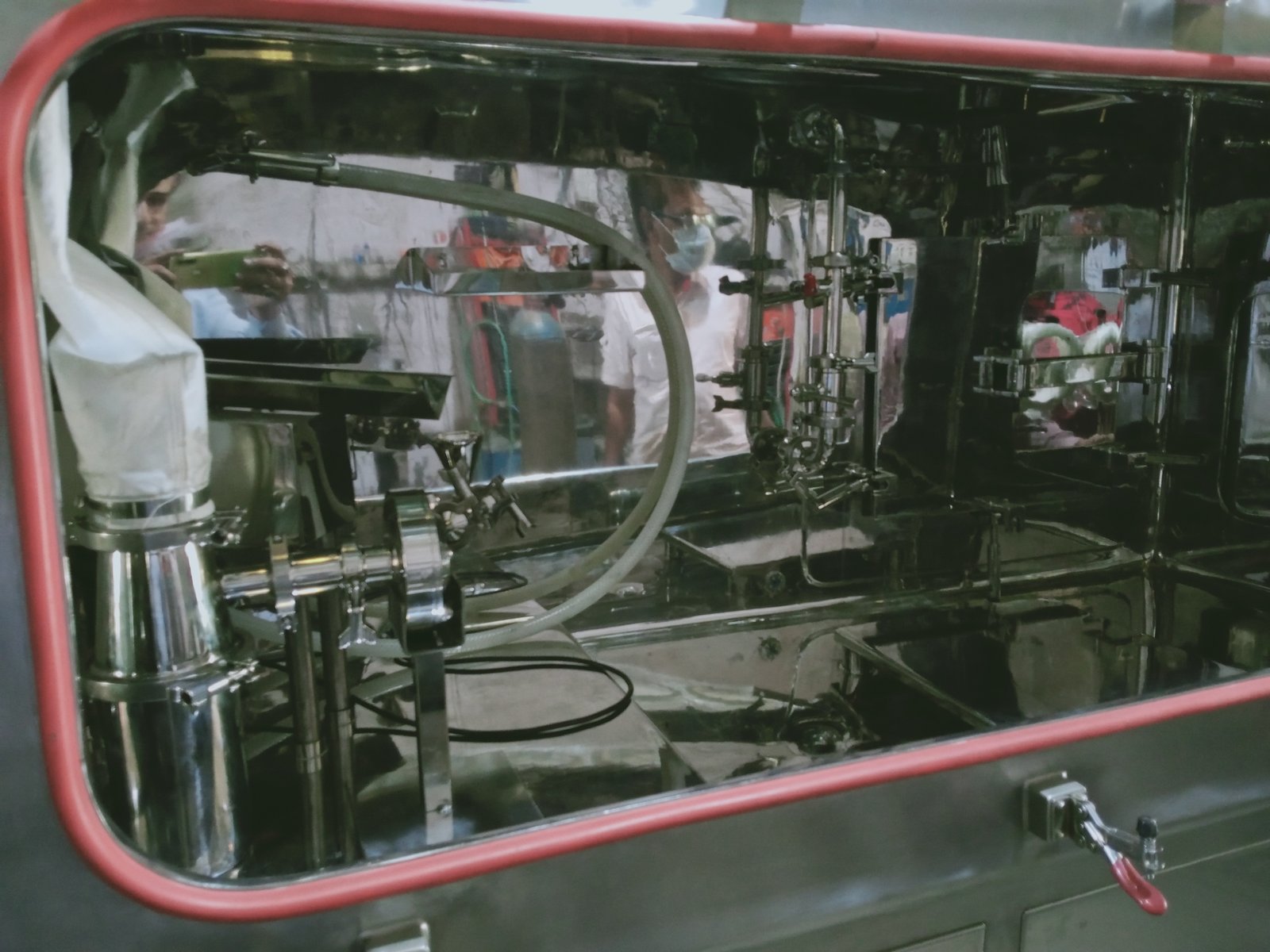

Air Jet Mill 2 Inch
Air Jet Mill 2 Inch

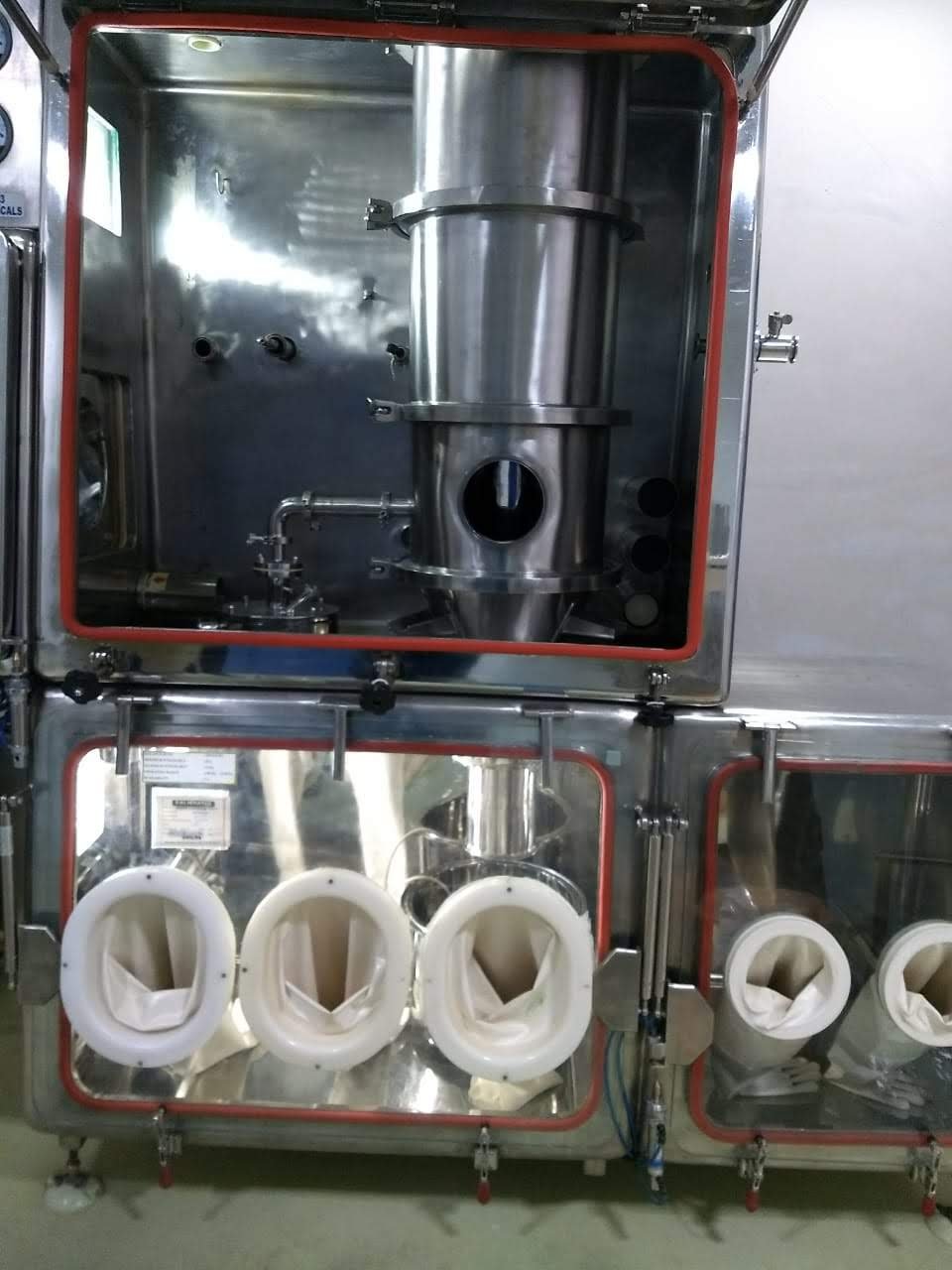

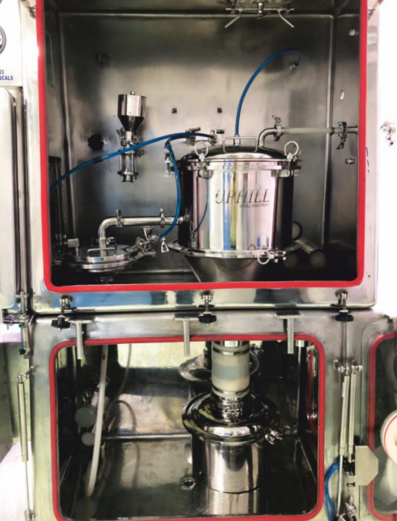

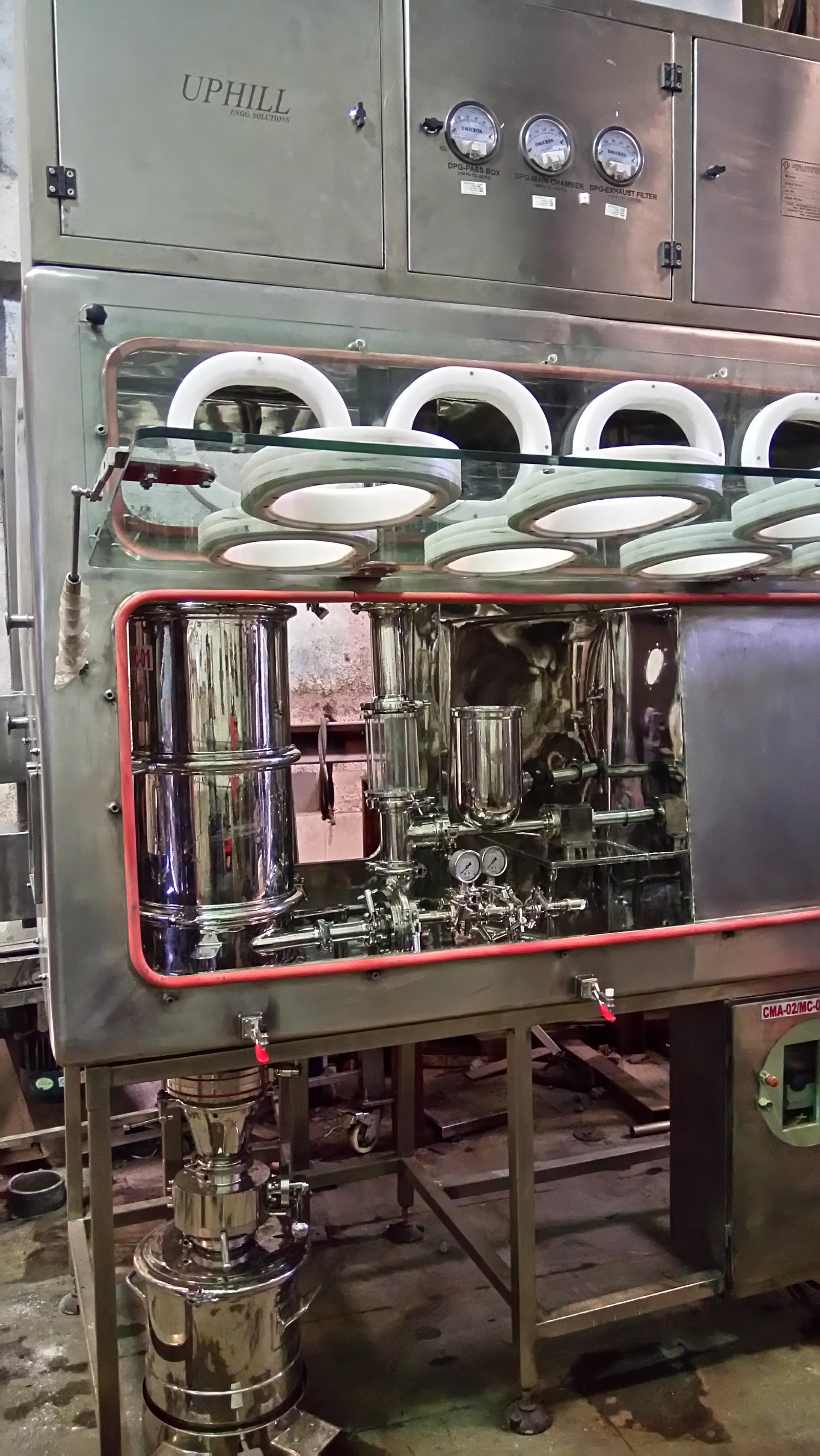

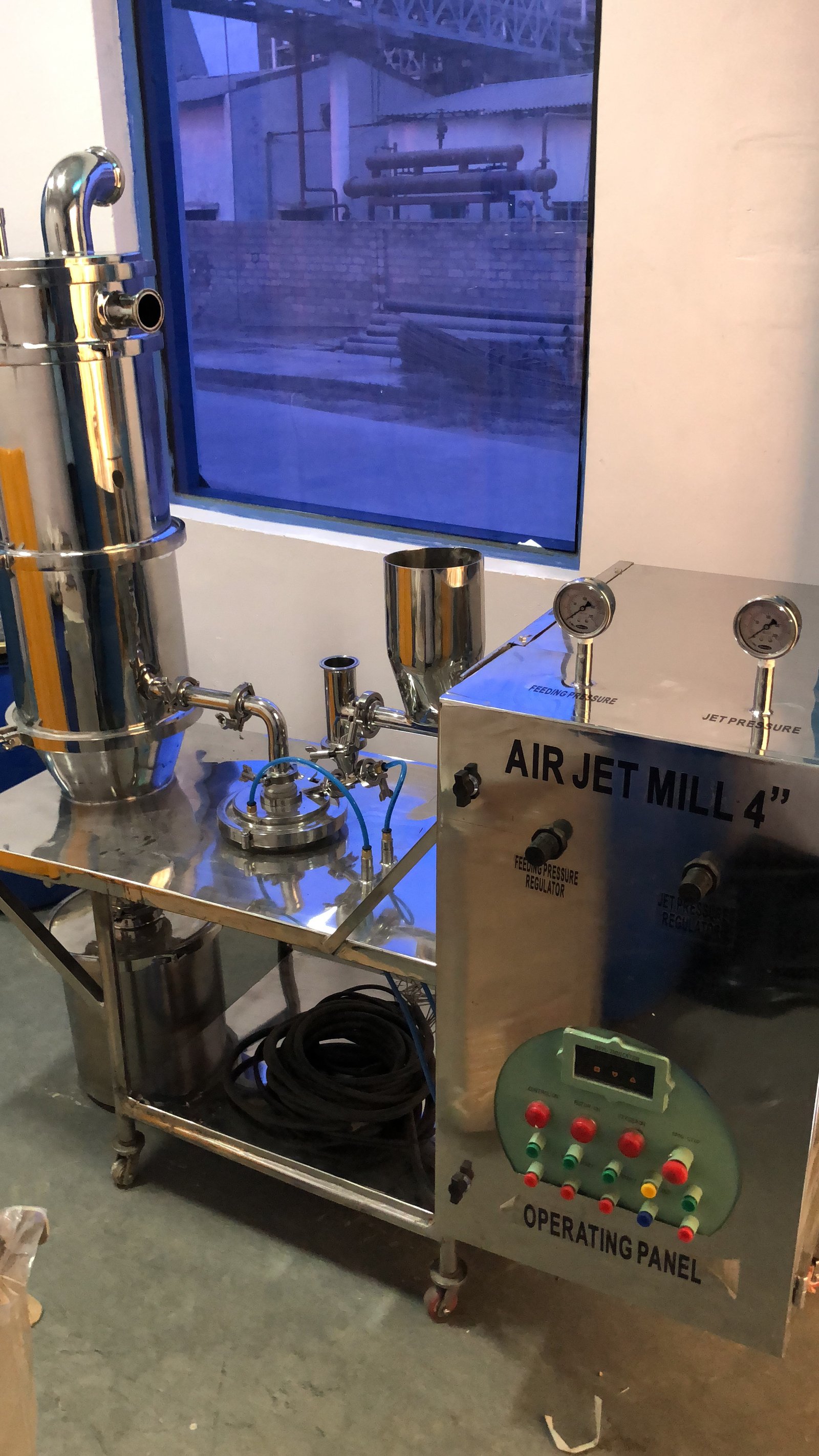

Air Jet Mill 4 Inch
Air Jet Mill 4 Inch

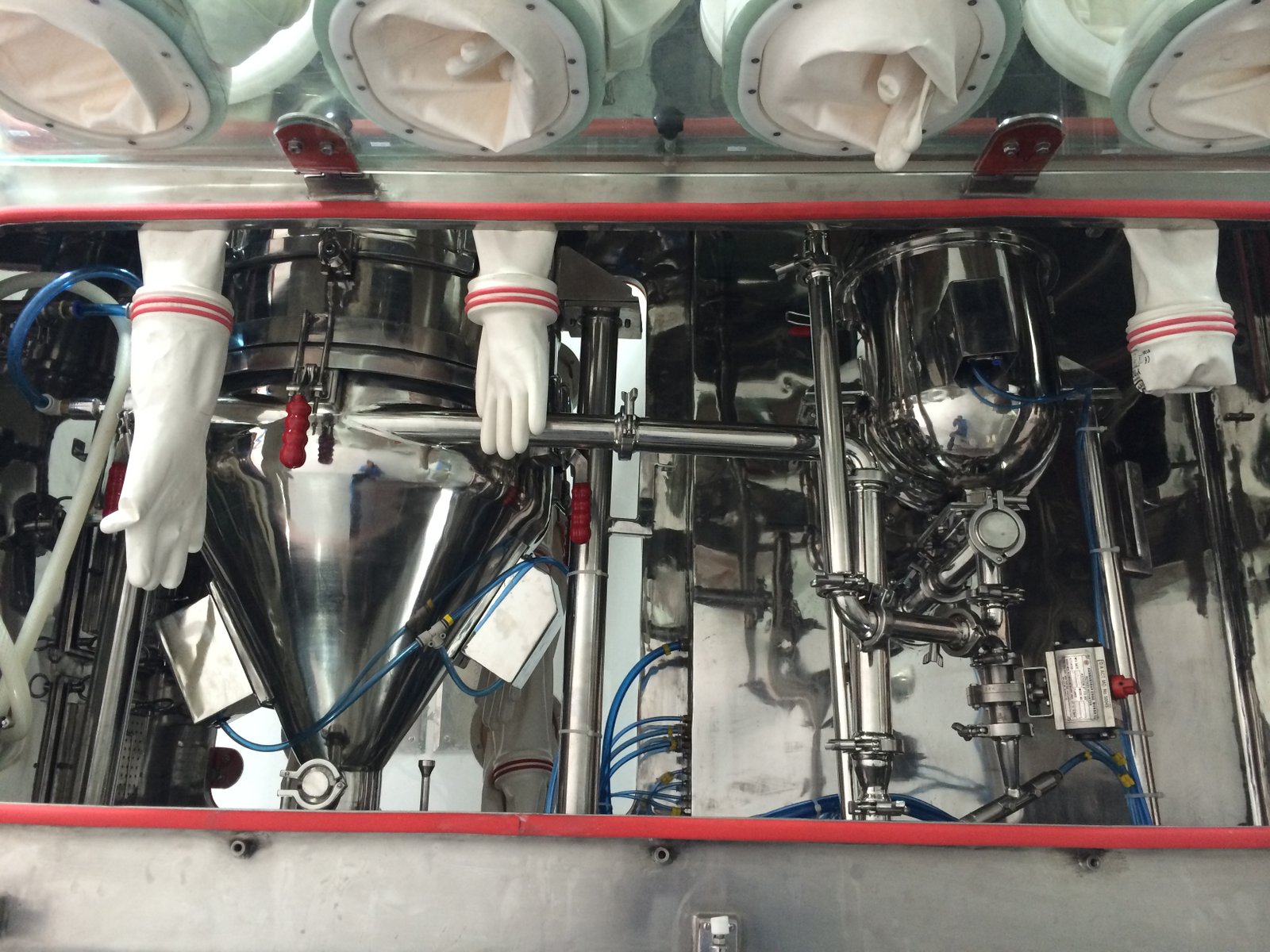

Air Jet Mill 8 Inch
Air Jet Mill 8 Inch

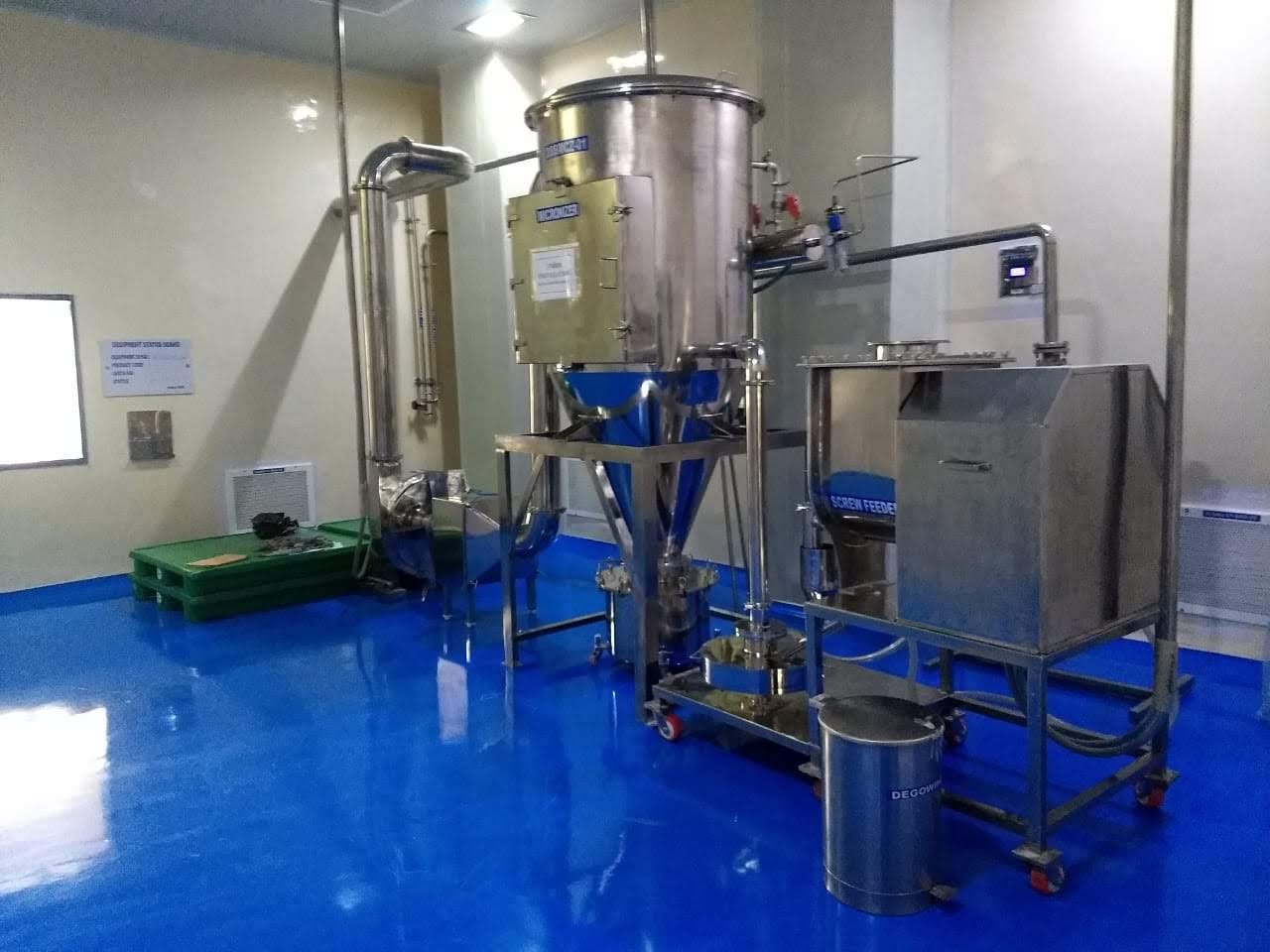

Air Jet Mill 12 Inch
