VTD3G	VTD6G	VTD12G	VTD24G	VTD36G	VTD48G
No. Of Trays	3	6	12	24	36	48
Capacity in Kg	3-5	18-Dec	25-35	50-75	75-100	100-150
Tray volume in Ltrs / Capacity in Kg	5+1-1.5	02-10-2003	02-10-2003	02-10-2003	02-10-2003	02-10-2003
Tray size: L W H in mm	406×406×31	812×406×31	812×406×31	812×406×31	812×406×31	812×406×31
No. of Heating Shelfs	4	7	7	13	13	17
Shelf size in mm	430×430	430×835	835×835	835×1259	835×1250	835×1250
Distance between shelves in mm	100	100	100	100	100	100
Trays on each self	1	1	2	3	3	3
Condenser	0.2m2	0.5m2	0.75m2	1m2	1.5m2	2m2
Receiver	10Ltrs	25Ltrs	50Ltrs	75Ltrs	100Ltrs	150Ltrs
H.W. Distribution Pipes	1½″	1½″	1½″	1½″	1½″	1½″
Door Gasket (Silicon)	16mmSQ	16mmSQ	16mmSQ	16mmSQ	16mmSQ	16mmSQ
No. of Door Bolts (Φ40)	4	6	8	10	12	12

Rotocone Vacuum Dryer (RCVD)

MODEL	RCVD 15	RCVD 100	RCVD 200	RCVD 300	RCVD 500	RCVD 750	RCVD 1000	RCVD 1500	RCVD 2000
Total Volume in Ltrs	15	100	200	300	500	750	1000	1500	2000
Working Volume in Ltrs	9	60	100	160	300	500	600	900	1200
Capacity in Kg (max)	5	30	75	100	175	250	350	500	700
RPM	6	6	6	6	6	6	8	6	6
Heat Transfer Area in m2	0.5	3.5	4.2	6	7	8	9.5	11	13
Cyclone Separator in Ltrs	1	5	7	10	15	20	25	30	40
Condenser in m2	0.1	0.5	0.75	1	1.5	2	2.5	3	4
Receiver in Ltrs	3	20	40	50	75	100	150	200	250
Charging Ht in mm	700	1350	1500	1800	2200	2300	2500	2500	2650
Discharging Ht in mm	300	600	650	650	700	750	750	750	750
Charging Size in mm	Ø150	Ø250	Ø300	Ø300	Ø350	Ø400	Ø400	Ø450	Ø500
Discharging Size in mm	Ø75	Ø125	Ø150	Ø150	Ø175	Ø200	Ø200	Ø225	Ø250
Gear Box	2°	2.5°	3°	3°	4°	4°	5°	6°	6°
Main Drive Motor	0.5HP	2HP	3HP	3HP	5HP	5HP	7.5HP	10HP	10HP
Lump Breaker Motor	--	--	--	0.25HP	0.25HP	0.5HP	0.5HP	0.5HP	1HP

OVERALL DIMENSIONS (Approximately)	RCVD 15	RCVD 100	RCVD 200	RCVD 300	RCVD 500	RCVD 750	RCVD 1000	RCVD 1500	RCVD 2000
Length in mm (with Cyclone)	850	1600	1850	2050	2250	2700	3000	3250	3600
Length in mm (with Cyclone, Condenser & Receiver)	1100	2000	2350	2500	2750	3200	3600	4000	4500
Width in mm (with Safety Guards)	550	1200	1300	1450	1600	1800	2100	2350	2650
Height in mm	750	1600	1775	1900	2000	2350	2600	2850	3000
Weight in Kg (Approx)	400	800	900	1000	1200	1800	2000	2500	3200

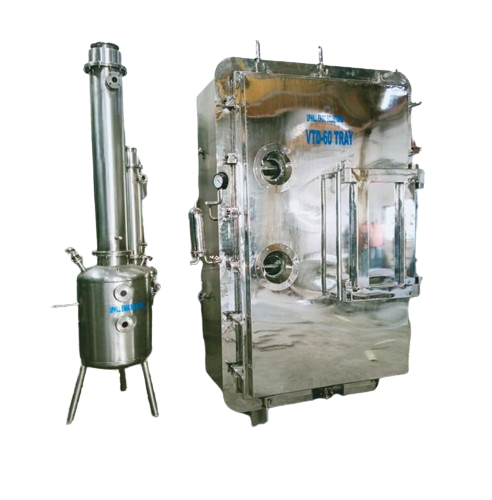

Tray Dryer

SHELF DRYER OVEN TECHICAL SPECIFICATIONS
MODEL	24	48	96	192
Number of Trays	24 Trays	48 Trays	96 Trays	96 Trays
Loading capacity	60 kg.	120 kg.	240 kg.	480 kg.
Blower motor Hp	1 HP	1 HP	1 HP X 2 Nos	1 HP X 4 Nos
Electrical Heating Load for 100°C	6 kW	9 kW	15 kW	36 kW
No. of Trolleys	Rack system	One	Two	Four
Tray Size in cm	80 X 40 X 3	80 X 40 X 3	80 X 40 X 3	80 X 40 X 3

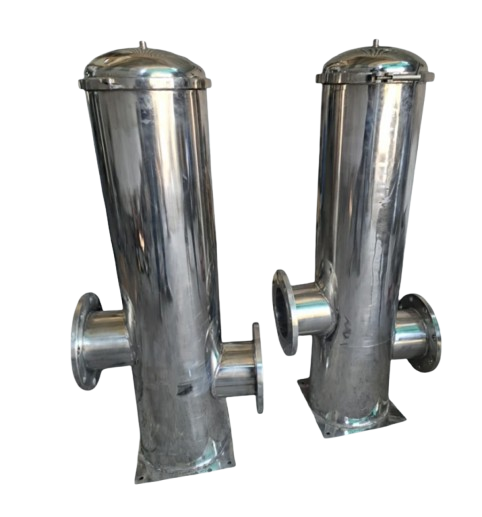

Cartridge Filter Housing

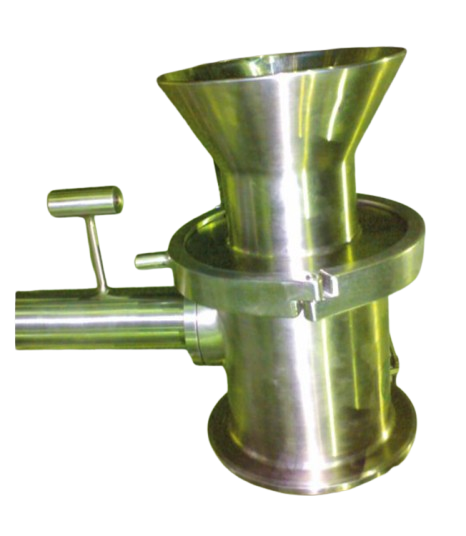

Con Mill
